Plastic Block

Home > Project Portfolio > Food Processing > Plastic Block

CNC Milling of Plastic Block for the Food Processing Industry

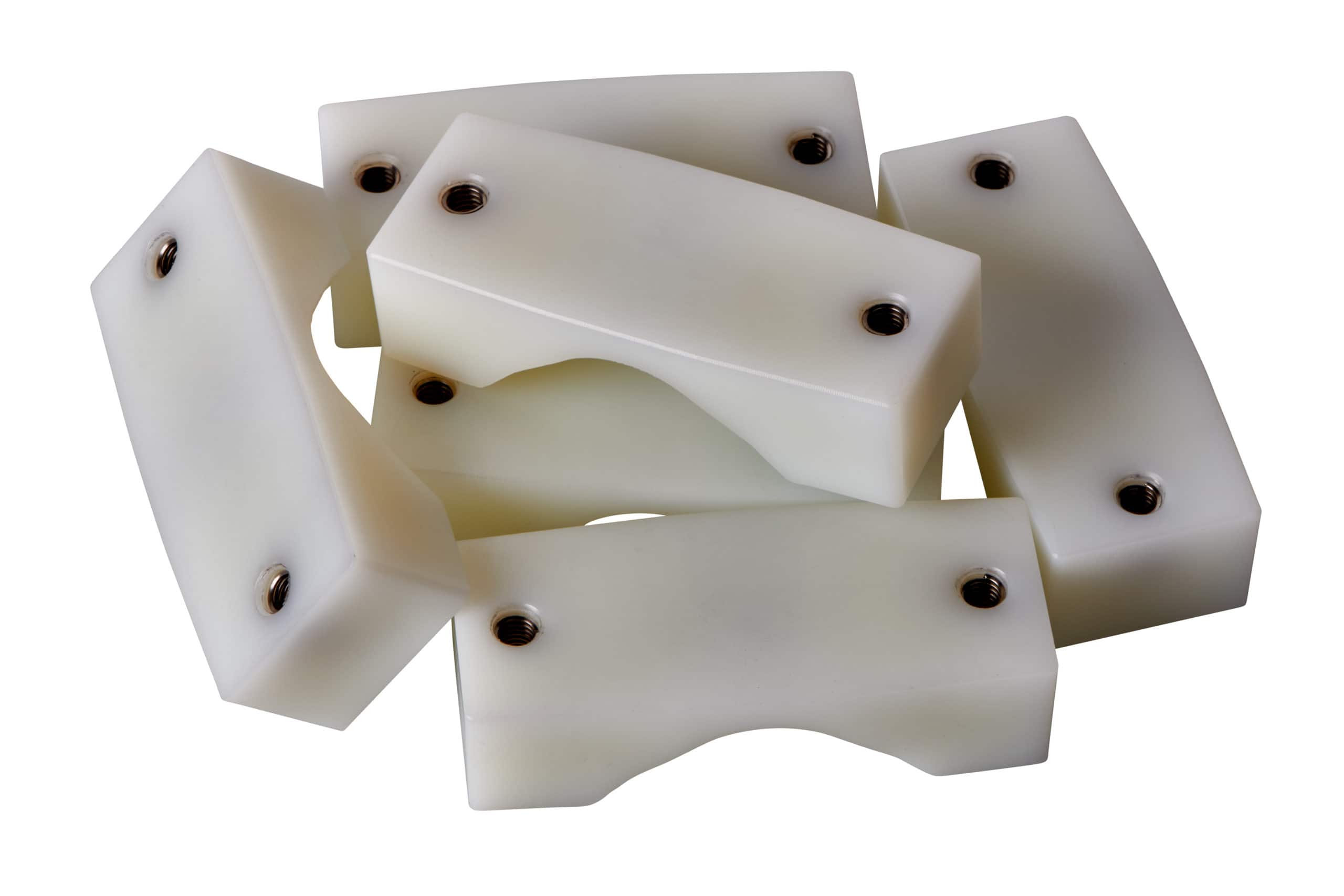

Plastic Block

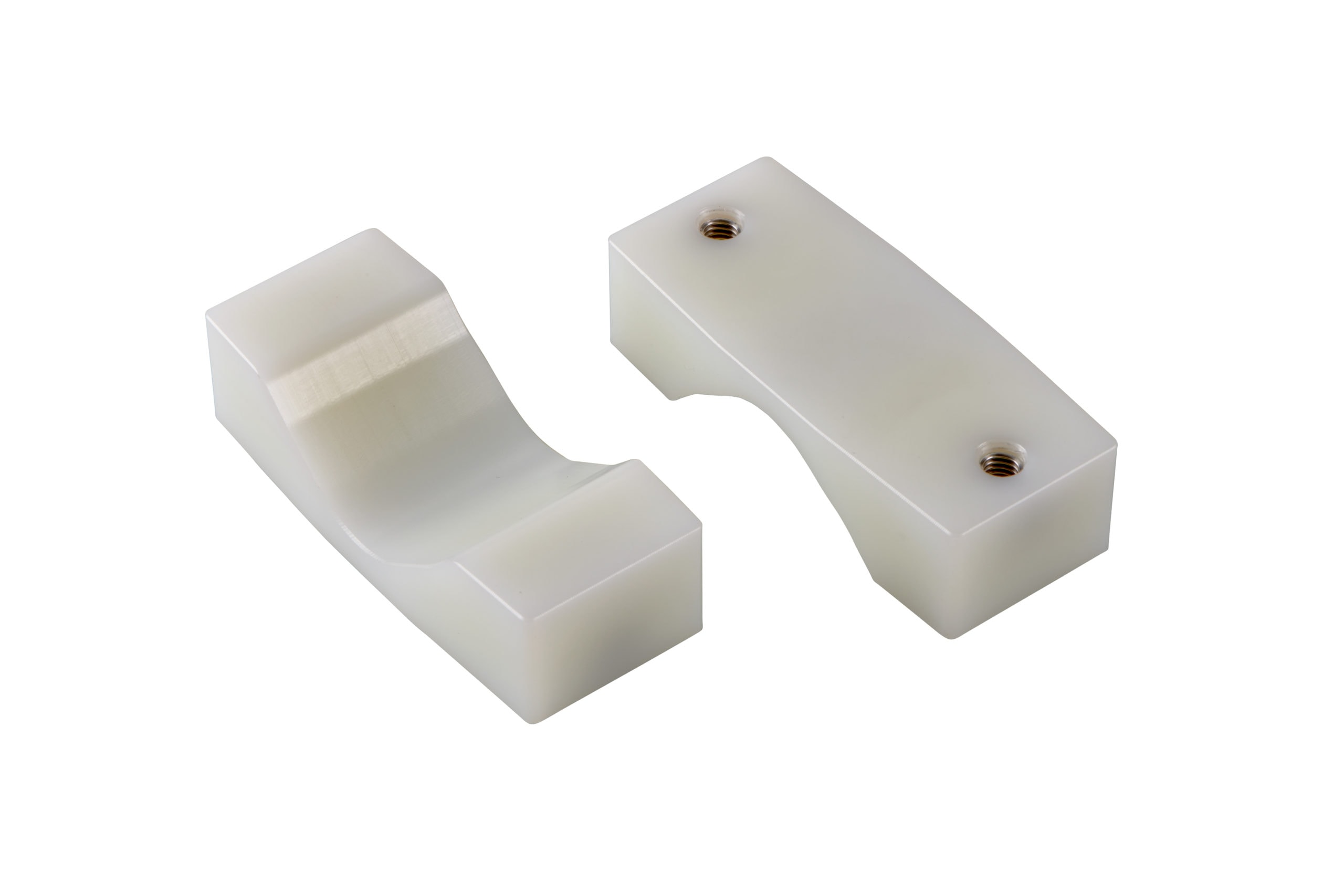

Plastic Block
Machined Plastic with Helicoils

Over many years and countless projects here at Solutions Manufacturing, we’ve developed an expert skill set in the art and science of machining plastics. Our vast experience in a wide range of plastic polymers make us “the go-to solution” for our customer’s machined plastic components. Whether its complex shapes, tight tolerances, or high volume projects, we’ve done it all.

This particular project is very typical of the many machined plastic components we produce on a daily basis. This plastic block is machined out of natural cast nylon, which was selected by our customer for its high strength, low friction and superior wear resistance. The block, along with the stainless steel Helicoil thread inserts, are FDA approved for their use in the Food Processing Industry.

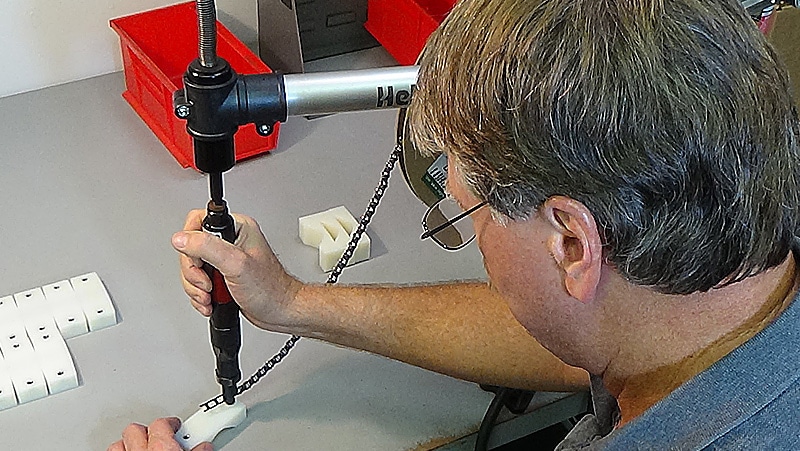

We bring in strips from one of our approved plastics vendors cut from standard 1” thick sheet, slit to our specified custom width. After incoming inspection, the strips are saw cut on our automated band saw into individual piece part blanks. Next the blanks are routed to one of our Automated Pallet Change, Kitamura Vertical Machining Centers. On the Kitamura we can maintain the tight tolerances of the parts complex geometric shape, while producing a complete part every cycle using the automated pallet change system. After a thorough cleaning process the parts are ready for their assembly operation. Using our air operated thread insert installation tool, we install two M6x1 Stainless Steel Helicoil thread inserts. Next the parts are put through a final inspection process and boxed to be delivered directly to our customer’s machine assembly floor.

This is but one example where we offer the customer the “complete solution.” Through our value added services we’ve stream lined their internal processing and enhanced their JIT throughput.

If you are interested in learning more about this project or have a similar product you’d like to discuss or have quoted, contact us directly today.

Request a Quote

Highlights of Precision Machined Components

Product Name
Plastic Block
Product Description
Plastic Block with Helicoil Thread Inserts
Capabilities Applied/Processes
Primary:
  • Saw Cutting
  • Machining
Secondary:
  • Assembly
Equipment Used to Manufacture Part
FMB Automated Band saw, Kitamura Vertical Machining Center with Automated Pallet Changer
Overall Part Dimensions
Length: 81 mm
Width: 34 mm
Height: 21 mm
Tightest Tolerances
±0.1 mm
Material Used
Cast Nylon
M6x1 Stainless Steel Helicoi Thread Inserts
In process testing/inspection performed
Dimensional and Visual Inspection
Industry for Use
Food Processing
Volume
1,500 units
Delivery Location
Des Moines, Iowa
Standards Met
Customer Specifications, 2D CAD Drawing, FDA, USDA, NSF
